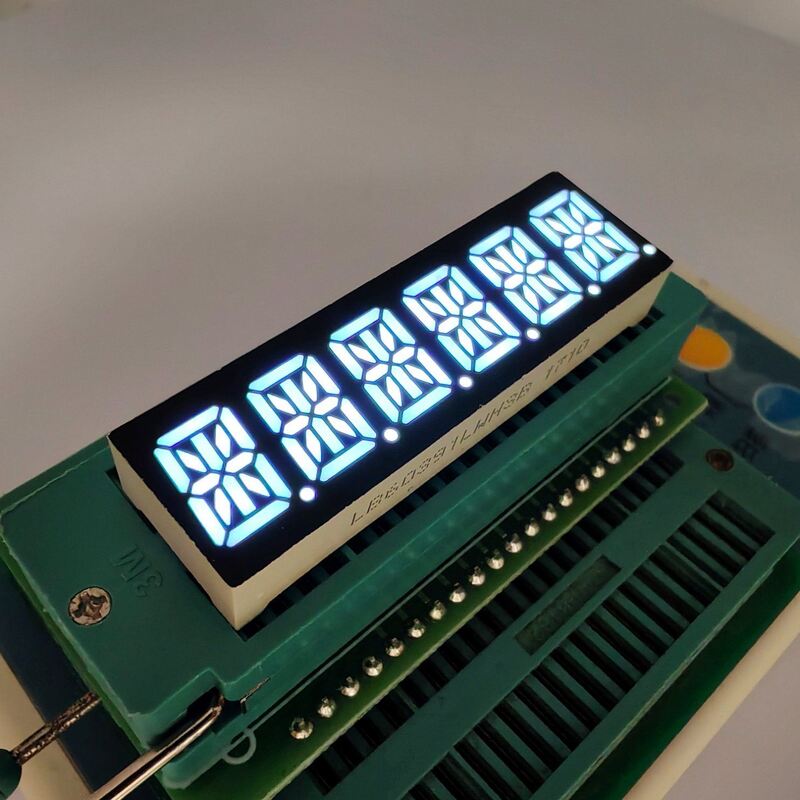

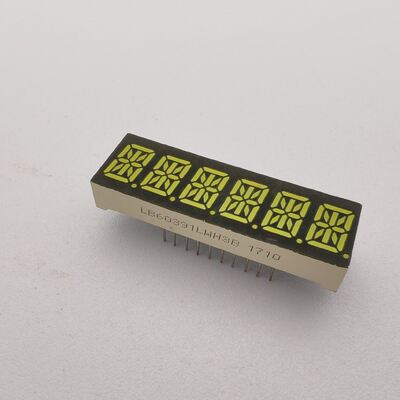

14-Segment LED Display with Superior Brightness and Clarity

Name: 14-Segment LED Display with Superior Brightness and Clarity
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB60391IWH3B
Price: 9.20 USD
Availability: InStock

نام تجاری:	LIGHTBO
شماره مدل:	LB60391IWH3B
مقدار تولیدی:	1000
قیمت:	Negotiate
شرایط پرداخت:	TT، وسترن یونیون
توانایی عرضه:	50000 عدد در روز

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

شنژن، چین

گواهی:

ISO9001&ROHS

قطبیت:

آند مشترک

نمایش روشنایی:

فوق العاده روشن

مواد:

PCB، اپوکسی، تراشه LED، پلاستیک

استفاده:

داخلی/خارجی

برنامه:

هود آشپزخانه

دمای عملیاتی:

-40 ~ 105 ℃

طول عمر:

80000 ساعت

جریان رو به جلو:

20 میلی آمپر

رنگ تراشه لوله:

رنگ کامل، قرمز، سبز، سفید، آبی

بعد صفحه نمایش:

اندازه سفارشی، 12.7x7.6x7mm، 50.4*19.0*8.1mm، 113mm*29mm، 28.8*40.8mm

عملکرد نمایش:

گرافیک، انیمیشن، ویدئو، عدد 0-9، دما

پیکسل ها:

10 میلی متر، 7 میلی متر، 25 میلی متر، 8.0، 10.20 میلی متر

رنگ:

آبی ، زرد ، سبز ، قرمز ، سفید

روشنایی:

کم نور خودکار با سنسور نور، 4000،7000 سی دی / متر مربع، 5000 ~ 6500 mcd، روشنایی بالا

گارانتی:

2 سال ، 1 سال

نام محصول:

صفحه نمایش LED HD P6 7 بخش، صفحه نمایش LED 7 سگمنت، پنل نمایشگر ویدئویی Chestnuter LED

نام:

نمایشگر بنزینی ایستگاه قیمت LED، صفحه نمایش LED کوچک هفت بخش 3 رقمی 0.2 اینچی 7 سگمنت smd LED، نمایش

ولتاژ:

DC12V، 90~120V/220~240V (بر اساس نیاز مشتریان)

ساطع رنگ:

آبی ، زرد ، سبز ، سفید ، قرمز

ارتفاع رقم:

0.2 اینچ، 1.5، 1.2، 0.38، 0.5

تراشه LED:

Epistar، InGan، AlGanlp

OEM:

بله

جزئیات بسته بندی:

EPE + کارتن

قابلیت ارائه:

50000 عدد در روز

برجسته کردن:

14-segment LED display with high brightness

14-segment LED display for clear visibility

14-segment LED display with superior clarity

توضیحات محصول

14-Segment LED Display with Superior Brightness and Clarity

Key Features

High forward voltage for superior luminous intensity output
Low power consumption
Extremely low current operation
Evenly distributed luminous intensity across each segment
Industrial standard size compatibility
Excellent reliability in bright ambient light conditions
Stable performance characteristics
Long operational lifetime
Compliant with RoHS/REACH standards

Applications

Audio equipment and instrument panels
Home electronic appliances
Numeric display systems
Multimedia products
Digital indicators for temperature, humidity, and process monitoring
Refrigerator temperature controllers
Thermostat indicators
Heating and cooling control systems

Technical Specifications

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Yellow Green (Code: J)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow (Code: Y)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange (Code: F)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red (Code: R)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red (Code: UR)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green (Code: G)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue (Code: BH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White (Code: WH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Manufacturer Information

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO)
Established in 2006, we are a company that integrates R&D, manufacturing and sales of optoelectronics LED Displays.
ISO 9001:2015 Quality Management Systems certified company with more than 15 years OEM and ODM experience.
LIGHTBO is committed to providing high quality and low cost customized solutions to help customers reduce costs and enhance competitiveness.

Product Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances, temperature indicators, humidity indicators, refrigerator controller, thermostats indicator, heating and cooling control systems.

Certifications

Office and Factory Overview

Company Exhibitions

Shipping Services

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are original manufacturers with more than 20 years experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

A: Our MOQ is 1000 pieces. We can also accept sample orders and small orders with quantity less than our MOQ.

Q4: Before placing an order, can I get some samples for testing?

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time: About 10-20 days, depending on order quantity and raw materials. For urgent orders with available raw materials, we can adjust production to complete within 7-10 days.

Q6: What are your terms of payment?

A: We accept bank transfer, T/T, Western Union and PayPal for small amounts. Payment method details are negotiable.

Q7: Can you quote me FOB prices?

A: Yes. We can quote prices based on incoterms EXW, FOB, CIF, DDP.

Q8: How can I get your catalogue and price list?

A: Please provide your email address or contact us directly through our website for our catalogue and price list.

Q9: Can I negotiate the prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much will the shipping charges be?

A: It depends on the size of your shipment and the shipping method. We will provide charges upon request.

Q11: Can you do custom design products?

A: Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.

Q12: If I send my design, can you make it exclusively for me and not show it to anyone else?

A: Yes, we will not show or sell your design to others without your authorization.

Q13: What is the sample lead time for customized products?

A: Sample lead time is approximately 20-25 working days after receiving mold cost and mold drawing approval from customers.

Q14: What are the shipping methods?

A: We usually ship by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA, etc. You can choose the method that works best for you.

Q15: How do you ensure the quality of your products?

A: We are ISO 9001 QMS certified manufacturers with over 20 years experience. We conduct twice 100% testing of all products before shipment.
