LED Square Dot Matrix Display Ultra Bright Purple for Elevators

LED Square Dot Matrix Display Ultra Bright Purple for Elevators

نام تجاری:	LIGHT-BO
شماره مدل:	LB03885BVSB-D
مقدار تولیدی:	1000
قیمت:	Negotiate
شرایط پرداخت:	TT پیشاپیش و وسترن یونیون، وسترن یونیون، T/T
توانایی عرضه:	20000 قطعه در روز

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

شنژن ， چین

گواهی:

ISO9001&RoHS

رنگ صورت:

قرمز

طول عمر:

80000 ساعت

مشخصات:

شدت لیمونوس و قابلیت اطمینان بالا

توضیحات:

مصرف برق کم،

ساطع رنگ:

ارغوانی

جریان رو به جلو:

30 میلی آمپر

جزئیات بسته بندی:

EPE+کارتن

قابلیت ارائه:

20000 قطعه در روز

برجسته کردن:

LED square dot matrix display,ultra bright purple LED display,elevator LED dot matrix display

ultra bright purple LED display

elevator LED dot matrix display

توضیحات محصول

LED Square Dot Matrix Display Ultra Bright Purple for Elevators

Dot Specifications:

Size: 3 × 3 mm
Emitter Color: Purple
Surface Color: Red
Pin Length: 10.28 mm
Polarity: Row Anode Column Cathode

Key Features:

High luminous intensity
High efficiency
Low power consumption
Extremely low operating current
Uniform luminance across all segments

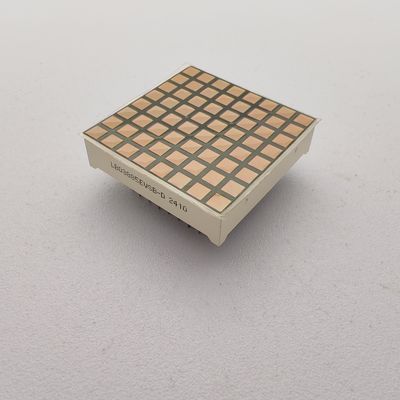

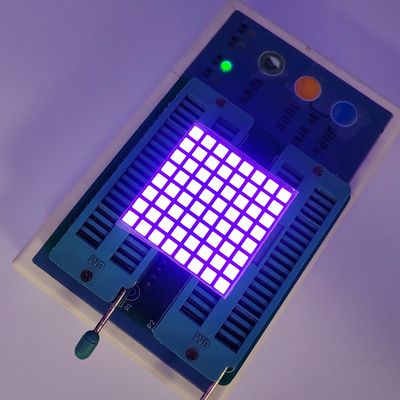

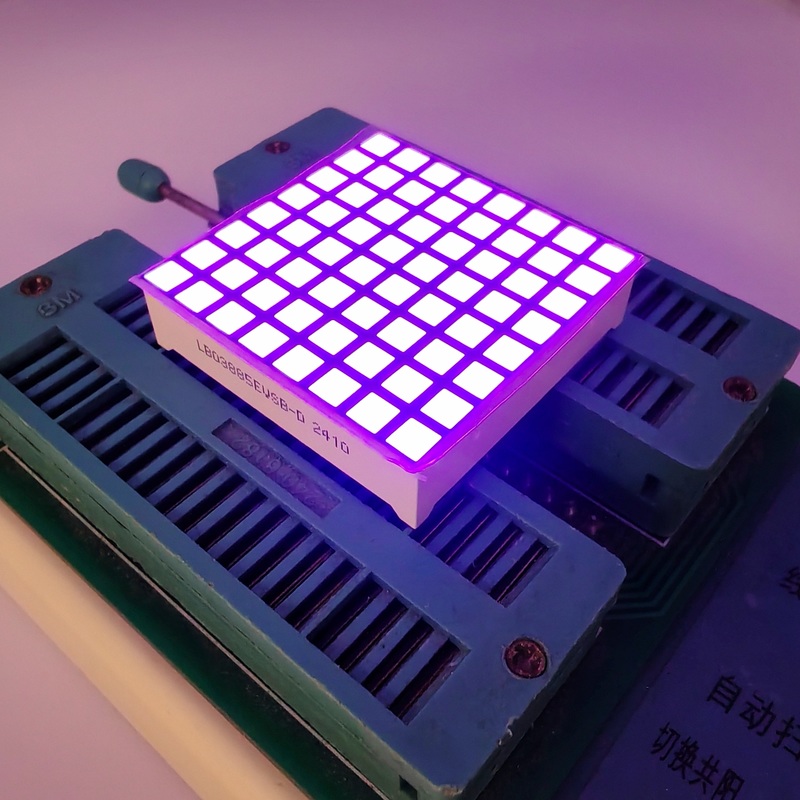

Product Pictures

Code: Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code: Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Color: Pure Green

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Code: Ultra Bright Blue -BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Code: Ultra Bright White -WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25 ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Supplier's Product Description

Delivery Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
EDT (days)	5	15	pending

Transportation Methods

Frequently Asked Questions

Q1: Are you trading company or manufacturer?

A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What is your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole led, SMD LEDs, LED Backlights, and so on.

Q3: What is your MOQ?

A: Our MOQ is 1000 pcs, We can also accept sample orders and small orders with quantity less than our MOQ.

Q4: Before placing order, Can I get some samples for test?

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time: About 10-20 days; According to order quantity and raw materials. If you have urgent order, and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days.

Q6: What is your terms of payment?

A: We accept bank transfer, T/T, Western Union and Paypal with small amount. Details of payment methods can be negotiable.

Q7: Can you quote me FOB prices?

A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF, DDP.

Q8: How can I get your catalogue and price list?

A: Yes. Please let us know your email address or contact us from website directly for our catalogue and price list.

Q9: Can I negotiate the prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.

Q11: Can you do custom design products?

A: Yes, OEM&ODM service are available. We can customize the sizes, led color and functional icons according to your requirements.

Q12: If I send my design, can you make it for myself only, and will not show it to any one else?

A: Yes, we will not show it or sell to others without your authorization.

Q13: What will be the samples lead time for customized products?

A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers.

Q14: What is the shipping methods?

A: We usually ship the goods by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA etc, also you can choose the other way that best for you.

Q15: How do you ensure the quality of your products?

A: We are ISO 9001 QMS certified manufacturers with more than 20 years experience. We conduct twice 100% percent test for all of our products before shipment.
